Visual Scripts ​

A visual script represents a calculation tree that can be edited using a form of visual programming. Users can create calculations, such as key figures or deviations, without programming knowledge. This is possible in Taurec applications like the Manager or Studio. Formulas, functions, and parameters can be linked graphically in a type of flow chart. The procedure is self-explanatory and easy to learn.

visual-script

Items ​

The building blocks of a visual script are commands, values, and variables. In applications like the Manager, these items are shown as rectangles. Each item can have up to three inputs and one output.

Output ​

In this example, the constant value 10 is defined. The item has no inputs. The output is shown as a filled rectangle at the bottom.

number

Input ​

The function + adds two numbers. Both inputs are shown as filled triangles at the top. The result is returned via the output.

addition

Items are connected by lines. In this example, the numbers 10 and 2 are added. The result 12 is returned at the output of the lower item.

addition-sample

Result ​

In a visual script, all items must be linked. The lowest (final) item has one output that is not linked to other items. This output returns the final result.

Calculation Flow ​

A visual script can be used for different tasks: calculating values in tables, calculating values during queries, or performing specific steps within Calculations.

In this example, a calculated field Amount * 2 is defined with a visual script that multiplies the field Amount by 2.

amount-visual-script

The result is shown in the table.

amount-list

Editor ​

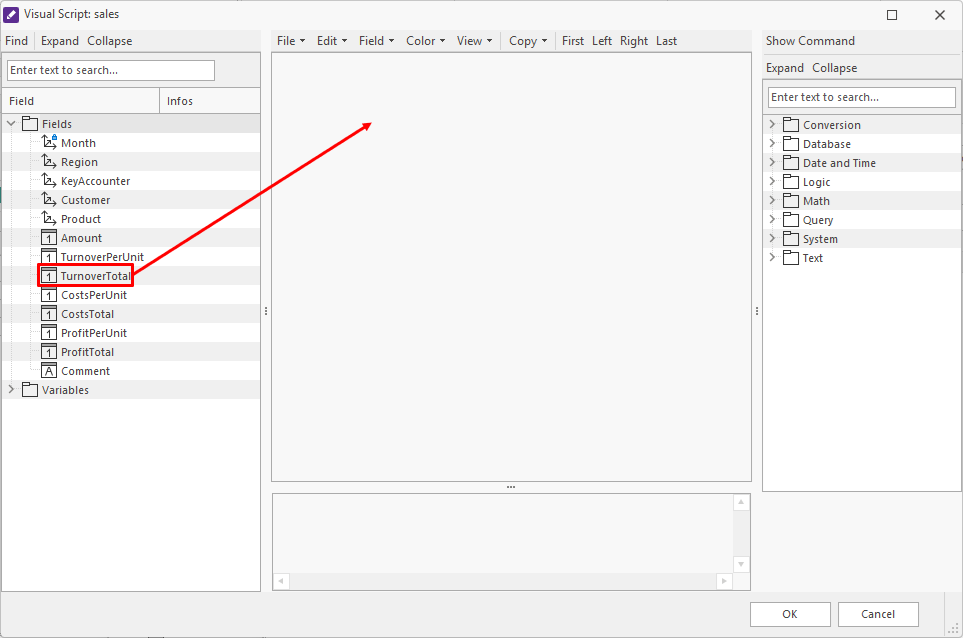

An editor is provided in several apps to create visual scripts graphically. When opening the editor for the first time, the fields in the list are shown on the left. To perform a calculation, a field can be moved into the empty area by dragging or double-clicking the field.

editor-new-field

Calculating Multiple Fields ​

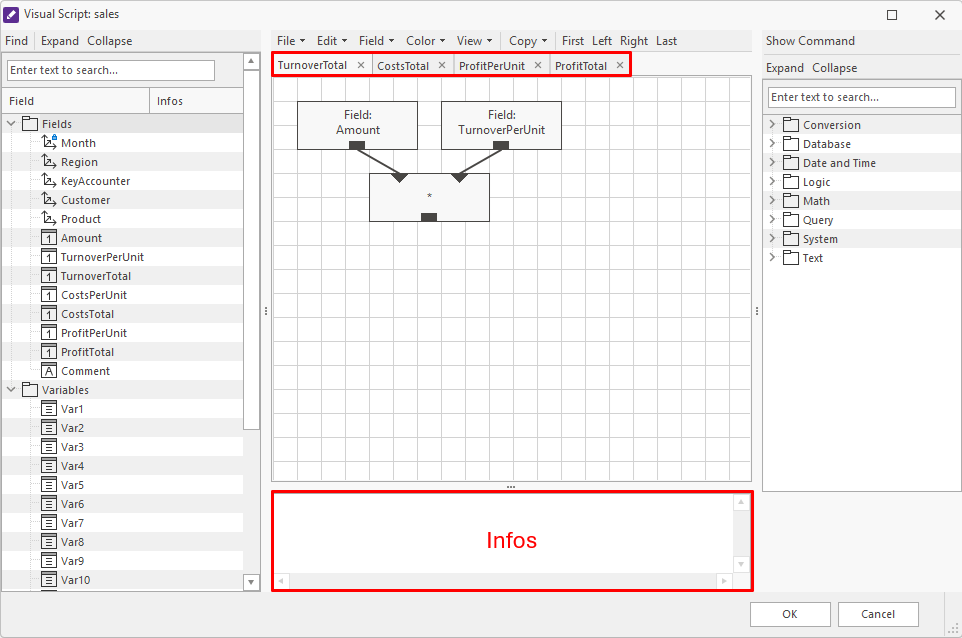

If several fields are to be calculated, each field needs to be dragged into the header of the tab pane or double-clicked. The fields are displayed one after another in the tab pane and are calculated in this order. Additional information can be stored for each field as text in the lower section.

editor-fields

Using Fields and Commands ​

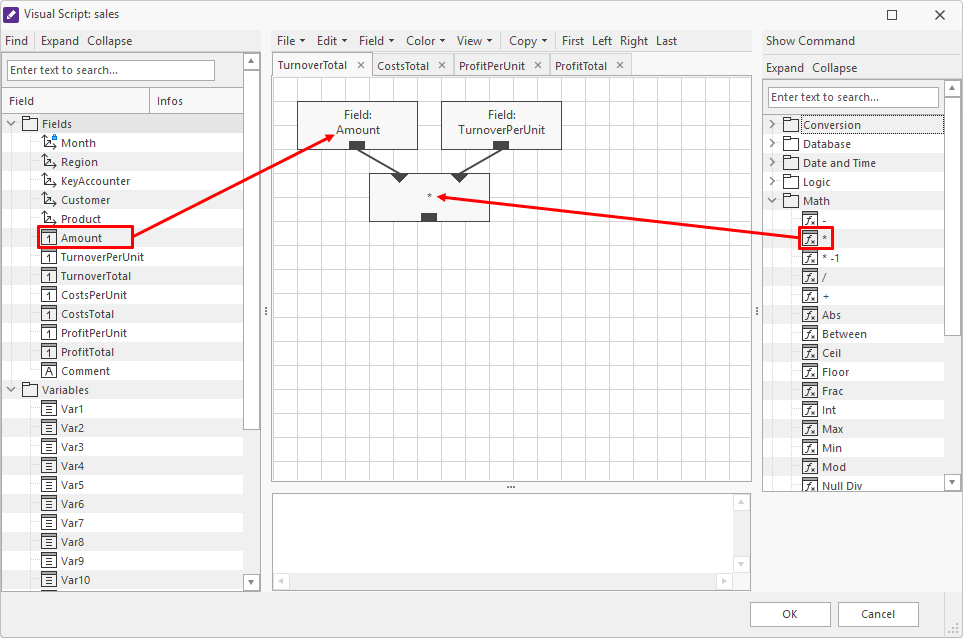

Once a field for the calculation is created, drag and drop can be used to place fields and commands.

editor-drag-drop

Kinds of Items ​

There are different kinds of items:

Constants ​

Constants are fixed numbers or texts. They have no input, only an output. Double-clicking the element in the editor opens a window to enter the value.

number-input

Fields ​

The data records in a list are processed during calculations. The fields in the list can be accessed in the visual script. These can be dimension elements, numbers, or texts.

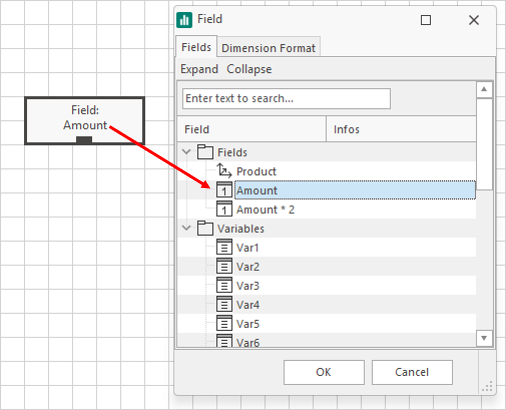

Fields have no input. Double-clicking the item in the editor opens a window to select or change a field.

field-input

Dimension Items ​

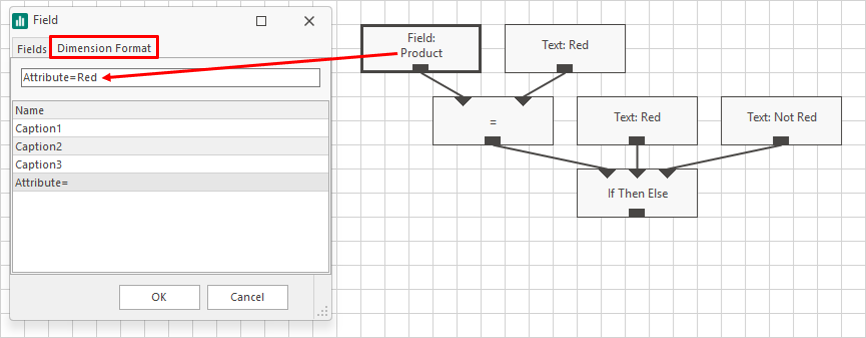

For dimension items, it is possible to access not only the name but also descriptions and attributes. The Dimension format tab can be used for this in the selection dialog.

In this example, the product attribute Color is queried.

attribute-input

Functions ​

A function performs calculations, such as Addition or Subtraction. Logical constructs like If-Then-Else also exist.

Variables ​

Each visual script has 20 variables that can be used to store intermediate calculation results. Variables can contain number and text values.
